Position the mobile table lift

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2025 BMW X4, 2024 BMW X4, 2023 BMW X4, 2022 BMW X4, and 2021 BMW X4. However, it is still accessible from the selected car via links, so may be relevant.

Position mobile lifting table 2 184 136 under vehicle and jack it up.

Courtesy of BMW OF NORTH AMERICA, INC.

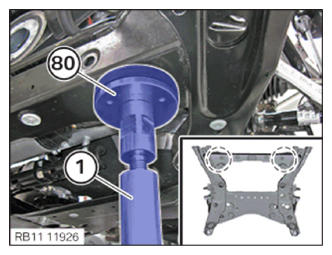

Position mounting elements (1) with the mountings (80) left and right at the front axle support.

Courtesy of BMW OF NORTH AMERICA, INC.

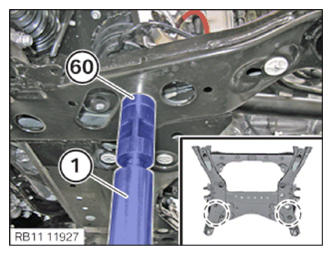

Position mounting elements (1) with the mountings (60) left and right at the front axle support.

Courtesy of BMW OF NORTH AMERICA, INC.
Position swivel bearing mounting (1) left and right on the swivel bearing.
Tighten down screws (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Position the mounting element (1) with the mount (80) on the automatic transmission.

Courtesy of BMW OF NORTH AMERICA, INC.

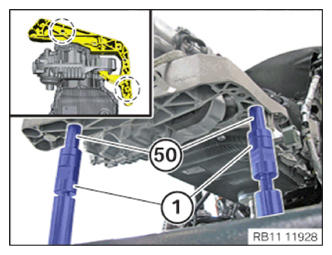

Position the mounting elements (1) with the mounts (50) on the transmission cross member.

Courtesy of BMW OF NORTH AMERICA, INC.
