Placing the output shaft, right, to the side
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2025 BMW X4, 2024 BMW X4, 2023 BMW X4, 2022 BMW X4, and 2021 BMW X4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Description is for left component only. Procedure on the right side is identical.
Placing the output shaft aside

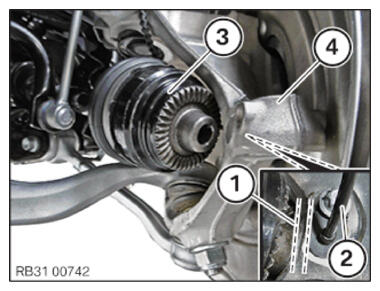

- Make sure there is sufficient distance (1) between the wheel speed sensor (2) and the output shaft (3).
- Turn swivel bearing (4) outwards.
- Set output shaft (3) aside in direction of travel.
