Partially loosening the prop shaft
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2025 BMW X4, 2024 BMW X4, 2023 BMW X4, 2022 BMW X4, and 2021 BMW X4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
RISK OF DAMAGE
Damage to prop shaft during removal.
Failure to observe the removal specifications for the prop shaft on the rear axle differential can lead to severe damage.
Damage to prop shaft during removal.
Failure to observe the removal specifications for the prop shaft on the rear axle differential can lead to severe damage.
- Do not disassemble the three-hole flange, flexible disc and prop shaft. The three-hole flange to the rear axle differential is balanced with the flexible disc and prop shaft.
- Loosen the recessed nut against the direction of travel in clockwise direction. The prop shaft may only be loosened at the recessed nut and only in the specified direction of rotation, otherwise the anti-twist lock of the 12-point collar nut will be damaged.
- In the event of a damaged anti-twist lock on the bi-hexagonal flange nut: Replace the rear axle differential.

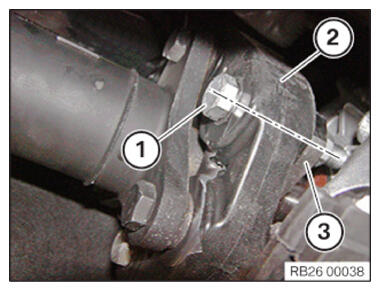

- Mark the installation position of the threaded connection (1) of the flexible disc (2) and the three-hole flange (3).
The identification makes it possible to install the prop shaft in the same position again. This should prevent a humming noise from the drive train during driving.

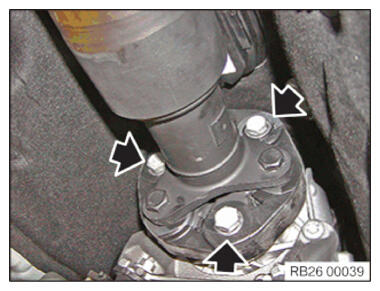

- Remove screws (arrows).

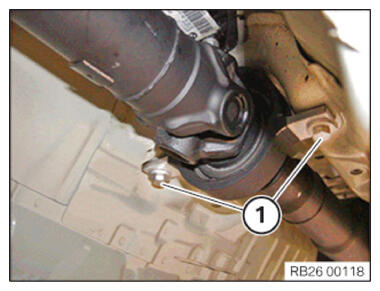

- Loosen the screws (1) on the central mount and hold down the prop shaft.
A major deflection angle of the prop shaft may damage the prop shaft and/or the joints.
- Tie up the prop shaft to the vehicle underbody.
