Installing the brake caliper at the front left and right

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2025 BMW X4, 2024 BMW X4, 2023 BMW X4, 2022 BMW X4, and 2021 BMW X4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Description is for left component only. Procedure on the right side is identical.

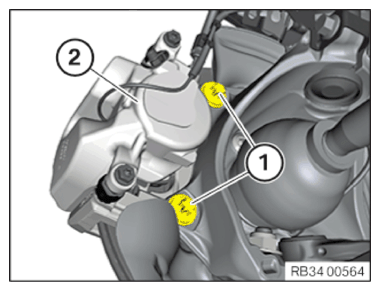

Insert the brake caliper (2).
Replace screws (1).
Parts: Screws

Tighten down screws (1).

TIGHTENING TORQUES SPECIFICATION

Brake caliper/brake anchor plate at front swivel bearing
M12 Replace screw.	Tightening torque	130 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

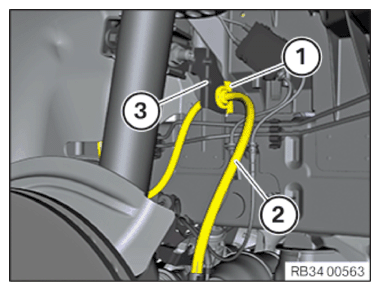

Hook the grommet (1) of the brake hose (2) into the holder (3).

Courtesy of BMW OF NORTH AMERICA, INC.

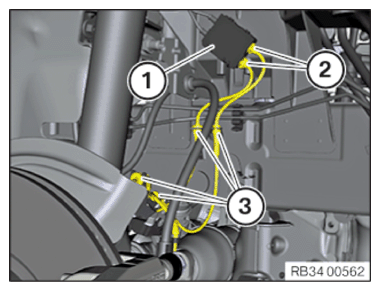

Clip in the cable bracket (3).
Connect connectors (2) and lock.
Close the housing (1).

Courtesy of BMW OF NORTH AMERICA, INC.
