Install the wheel arch cover on the front left and bottom right
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2025 BMW X4, 2024 BMW X4, 2023 BMW X4, 2022 BMW X4, and 2021 BMW X4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Description is for right component only. The procedure on the left side is identical.
Installing the front bottom wheel arch cover
NOTE:

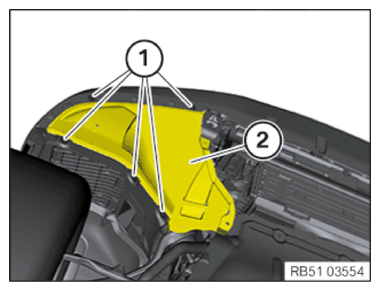

To provide a better overview: Schematic diagram with partially hidden components.
- Guide the wheel arch cover (2) in.
- Tighten down screws (1).
TIGHTENING TORQUES SPECIFICATION
| Wheel arch cover (screws) | ||
|---|---|---|
| Thermoplastic hexagon screw | Tightening torque | 3 Nm |
NOTE:
Description is for left component only. Procedure on the right side is identical.

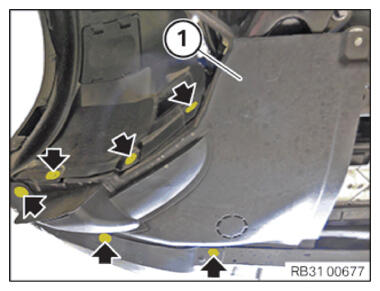

- Guide the wheel arch cover (1) in.
- Tighten all bolts (arrows).
TIGHTENING TORQUES SPECIFICATION
| Wheel arch cover (screws) | ||
|---|---|---|
| Thermoplastic hexagon screw | Tightening torque | 3 Nm |
NOTE:
Description is for left component only. Procedure on the right side is identical.
Installing the front bottom wheel arch cover
- Guide the wheel arch cover (1) in.
- Tighten all bolts (arrows).
TIGHTENING TORQUES SPECIFICATION
| Wheel arch cover (screws) | ||
|---|---|---|
| Thermoplastic hexagon screw | Tightening torque | 3 Nm |
