Install the rear section of the front wheel arch cover on the left and right
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2025 BMW X4, 2024 BMW X4, 2023 BMW X4, 2022 BMW X4, and 2021 BMW X4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Description is for left component only. Procedure on the right side is identical.
Install the rear section of the front wheel arch cover
NOTE:

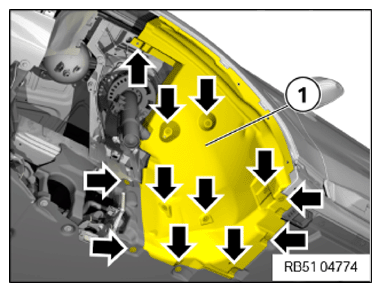

To provide a better overview: Schematic diagram with partially hidden components.
- Feed in rear section (1) of the front wheel arch cover.
- Tighten screws (arrows).
TIGHTENING TORQUES SPECIFICATION
| Wheel arch cover (screws) | ||
|---|---|---|
| Thermoplastic hexagon screw | Tightening torque | 3 Nm |
