Install the cover of the steering assembly on the left and right
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2025 BMW X4, 2024 BMW X4, 2023 BMW X4, 2022 BMW X4, and 2021 BMW X4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Description is for left component only. Procedure on the right side is identical.
Install the cover of the steering assembly
NOTE:

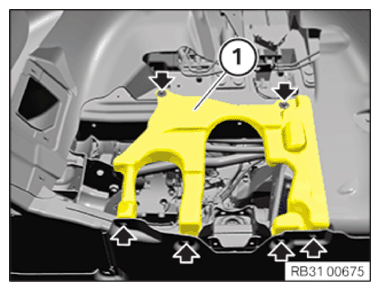

To provide a better overview: Schematic diagram with partially hidden components.
- Insert the cover (1).
- Tighten all bolts (arrows).
TIGHTENING TORQUES SPECIFICATION
| Cover, steering unit | ||
|---|---|---|
| Screw | Tightening torque | 3 Nm |
