Install the connecting supports on the tunnel

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2025 BMW X4, 2024 BMW X4, 2023 BMW X4, 2022 BMW X4, and 2021 BMW X4. However, it is still accessible from the selected car via links, so may be relevant.

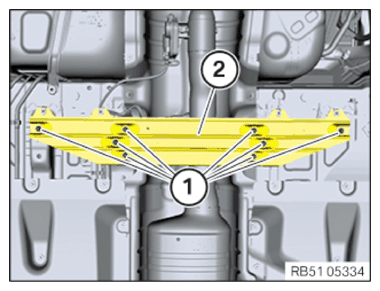

Position the connecting support (2) on the tunnel.
Tighten the screws (1).

TIGHTENING TORQUES SPECIFICATION

Connecting support on tunnel to body
M8x25 screw	Tightening torque	20 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
