Install tank cover on left and right
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2025 BMW X4, 2024 BMW X4, 2023 BMW X4, 2022 BMW X4, and 2021 BMW X4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The description is provided only at one component. The procedure is the same for all other components.

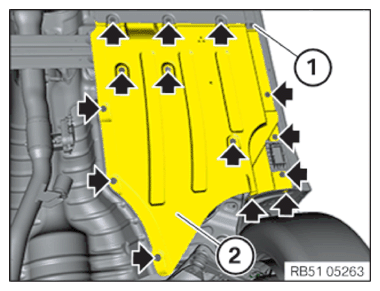

Installing tank cover
- Guide in tank cover (2) and position correctly.
- Tighten all bolts (arrows) and the plastic nuts (1).
TIGHTENING TORQUES SPECIFICATION
| Undershield | ||
|---|---|---|
| Screw | Tightening torque | 2.6 Nm |
| Plastic nut | Tightening torque | 2.6 Nm |
