Fitting the wishbone, right, at the swivel bearing
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2025 BMW X4, 2024 BMW X4, 2023 BMW X4, 2022 BMW X4, and 2021 BMW X4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Description is for left component only. Procedure on the right side is identical.

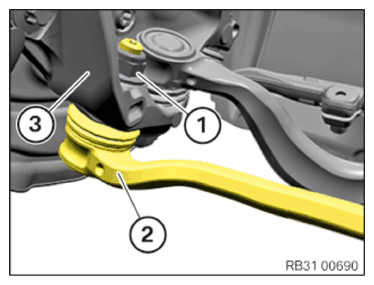

Secure the wishbone at the swivel bearing
- Position the wishbone (2) on the swivel bearing (3).
- Replace nut (1).
Parts: Nut
- Tighten nut (1).
Counter-hold at the Torx socket.
TIGHTENING TORQUES SPECIFICATION
| Wishbone to swivel bearing | ||
|---|---|---|
| M16 Replace nut. |
Joining torque | 100 Nm |
| Angle of rotation | 90° | |

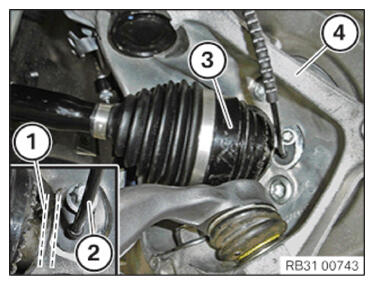

- Make sure there is sufficient distance (1) between the wheel speed sensor (2) and the output shaft (3).
- Position output shaft (3) on the swivel bearing (4).
- Clip in the cable for the wheel speed sensor (2).NOTE: The following step(s) must be performed if the specified component(s) is/are installed.

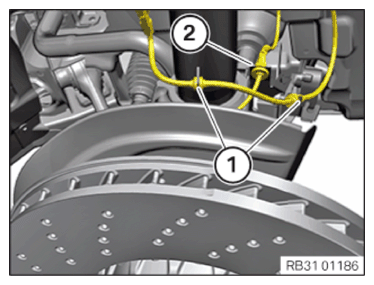

- Clip the cable for the Dynamic Damping Control into the holders (1).NOTE: The following step(s) must be performed if the specified component(s) is/are installed.

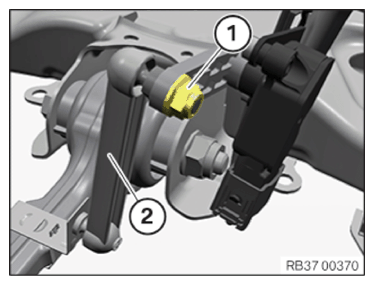

- Position connecting rod (2) at the ride height sensor.
- Tighten nut (1).
TIGHTENING TORQUES SPECIFICATION
| Jointed rod to ride height sensor | ||
|---|---|---|
| M6 | Tightening torque | 8 Nm |
