Fastening the positive battery cables

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2025 BMW X4, 2024 BMW X4, 2023 BMW X4, 2022 BMW X4, and 2021 BMW X4. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Improper routing of the positive battery cable.
Risk of short circuits!

Route the positive battery cable without abrasions and do not trap.

WARNING: Incorrect screw connection of positive battery cable.
Risk of fire!

Ensure that the positive battery cable is screwed with the correct nut.

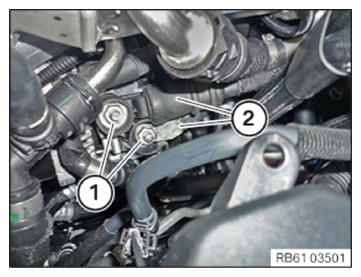

Feed in the positive battery cables (2) and position them on the starter motor generator.
Replace the nuts (1).
Parts: Nuts

Tighten nuts (1).

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUES SPECIFICATION

Positive battery cable to the starter motor generator
M8	Tightening torque	19 Nm

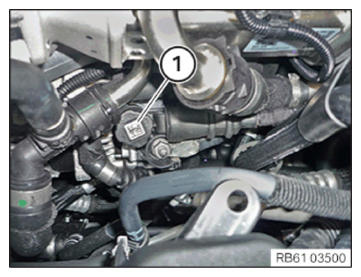

Insert and install the cover (1).

Courtesy of BMW OF NORTH AMERICA, INC.

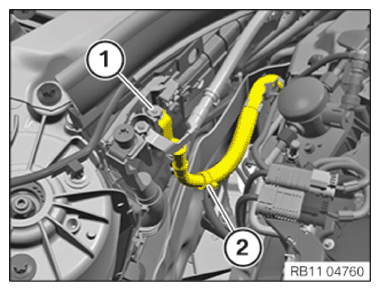

Feed the positive battery cable (2) into the holder and install it.

Tighten nut (1).

TIGHTENING TORQUES SPECIFICATION

Battery positive lead to battery positive terminal
M8	Tightening torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Schematic diagram is for example purposes.
Some parts may differ in certain details.

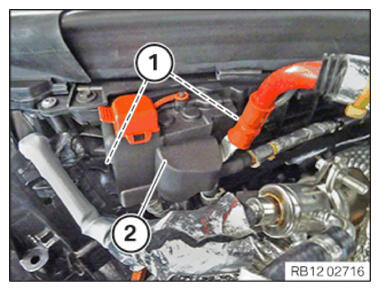

Insert and install the cover (2).
The locks (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.
