Draining the motor oil
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2025 BMW X4, 2024 BMW X4, 2023 BMW X4, 2022 BMW X4, and 2021 BMW X4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
RISK OF DAMAGE
Contaminant or foreign body.
Contamination can result in malfunctions, loss of function or leaks.
Contaminant or foreign body.
Contamination can result in malfunctions, loss of function or leaks.
- Adhere to the utmost cleanliness.
- Protect components from contamination e.g. by covering.
- Close off line connections with seal plugs.

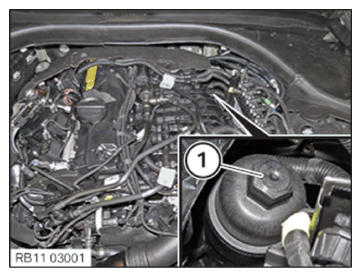

- Loosen the oil filter cover (1).
- Release oil drain plug (1).
- Allow the motor oil to drain out fully.
- Replace the sealing ring.
Parts: Sealing ring
- Tighten oil drain plug (1).
TIGHTENING TORQUES SPECIFICATION
| Oil drain plug | ||
|---|---|---|
| M12x16 Replace the sealing ring. |
Tightening torque | 25 Nm |
