Disconnecting the coolant lines
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2025 BMW X4, 2024 BMW X4, 2023 BMW X4, 2022 BMW X4, and 2021 BMW X4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.

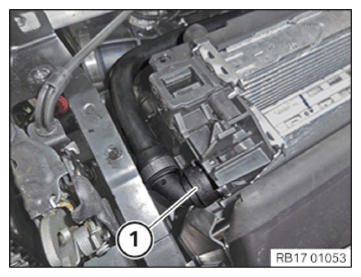

- Unlock and disconnect the coolant line (1).
- Catch and dispose of escaping coolant.
- Unlock the lock (1).
- Remove the cover panel (2) above on the cooling module.
- Unlock the coolant hose (1) and disconnect it from the radiator of the low-temperature coolant circuit.
- Catch and dispose of escaping coolant.
- Unlock lock (1).
- Pull coolant expansion tank (2) of the low-temperature coolant circuit upwards slightly.
- Dispose of emerging coolant.
- Unlock and loosen coolant line (1).
- Unlock and loosen coolant line (2).
- Catch and dispose of escaping coolant.
- Feed out and remove the coolant expansion tank of the low-temperature coolant circuit.NOTE: The following step(s) must be performed if the specified component(s) is/are installed.
- Unlock and release coolant line (1).
- Unlock and loosen the locks (2).
- Lift the coolant expansion tank (3) and feed out the grommet (4) while doing so.
- Unlock plug connection (1) and disconnect.
- Unlock and release the coolant line (2).
- Catch and dispose of escaping coolant.
- Thread out coolant expansion tank (3) and remove.
