Connect fuel line and fuel tank vent line
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2025 BMW X4, 2024 BMW X4, 2023 BMW X4, 2022 BMW X4, and 2021 BMW X4. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Working on fuel system.
Risk of fire! Danger of explosion!
Risk of fire! Danger of explosion!
- When working on the fuel system, make sure the workstation has sufficient ventilation, e.g., by means of extraction.
- Tightly seal off open lines and connections; collect any leakage fuel directly at the point of exit.
- No fire, sparks, open flames or smoking.
NOTE:
TECHNICAL INFORMATION
Make sure that the connections are locked correctly. The locks must engage audibly.
Make sure that the connections are locked correctly. The locks must engage audibly.

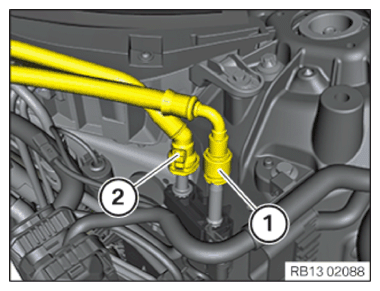

- Connect and lock fuel line (1).
- Check fuel system for leak tightness.
- Connect tank vent line (2) and lock.
