Installing the right charge air line
NOTE:
TECHNICAL INFORMATION
Check the plastic components of the locking mechanism or clamp for damage.
Replace the charge air ducts with damaged plastic components on the locking mechanism.
Check the plastic components of the locking mechanism or clamp for damage.
Replace the charge air ducts with damaged plastic components on the locking mechanism.
- If necessary, replace clamp (2).
Parts: cl

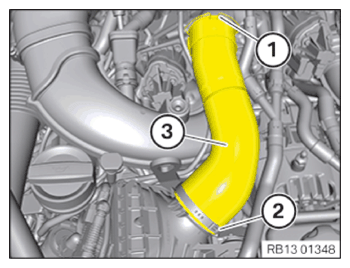

- Mount the circlip (2) on the charge air line (3).
- Install the charge air line (3).
- Lock the lock (1) audibly.
- Secure the charge air line (3) with the circlip (2) on the charge air cooler.
