Installing the fuel filler pipe

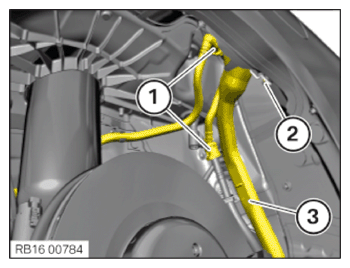

- Position the fuel filler pipe (3).
- Replace nut (2).
Parts: Nut
- Fit nut (2) and tighten.
TIGHTENING TORQUES SPECIFICATION
| Fuel filler pipe on upper body | ||
|---|---|---|
| Nut M6 Replace nut. |
tightening torque | 8 Nm |
- Position and lock snap fasteners (1).
- Replace nuts (1).
Parts: Nuts
- Install the nuts (1) and tighten.
TIGHTENING TORQUES SPECIFICATION
| Fuel filler pipe to body | ||
|---|---|---|
| Plastic nut Replace plastic nut. |
tightening torque | 4 Nm |
- Mount filling hose on the fuel tank in the arrow direction.
- Replace the hose clamp (1).
Parts: Hose clamp
- Position hose clamp (1) and tighten.
TIGHTENING TORQUES SPECIFICATION
| Filling hose on fuel tank | ||
|---|---|---|
| Hose clamp Replace hose clamp. |
tightening torque | 4 Nm |
- Close sealing cap (1).
Follow-up work
- Refer to INSTALLING TANK COVER .
- Refer to REMOVING THE REAR WHEEL ARCH COVER .
- Refer to MOUNTING THE REAR RIGHT WHEEL .
- Refer to FILLING FUEL TANK .
