Replacing oil pump

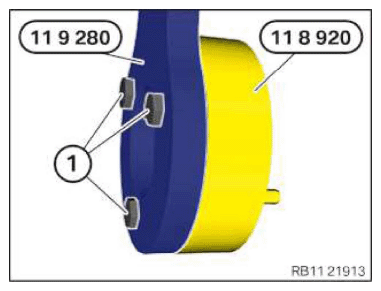

Position special tool 0 493 940 (11 9 280) on special tool 0 496 369 (11 8 920) .
Attach and connect the special tools hand-tight with standard M8 screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
The thread is a left-hand thread.
Do not counter-hold the oil pump drive with pliers.

Courtesy of BMW OF NORTH AMERICA, INC.

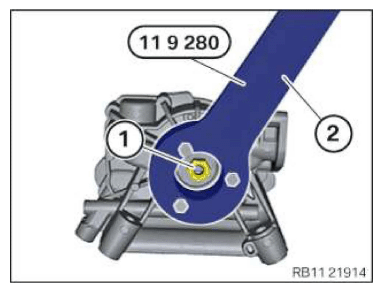

Correctly position the special tools 0 496 369 (118 920) and 0 493 940 (11 9 280) (2) on the sprocket wheel.
With the help of a second person, counter-hold the oil pump on the special tool 0 493 940 (11 9 280) (2).
NOTE: TECHNICAL INFORMATION
The thread is a left-hand thread.

Courtesy of BMW OF NORTH AMERICA, INC.

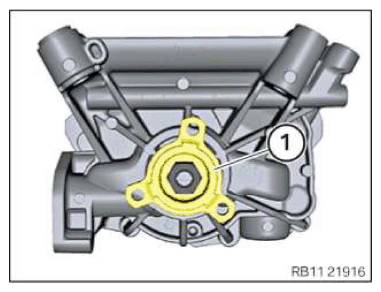

Loosen nut (1).

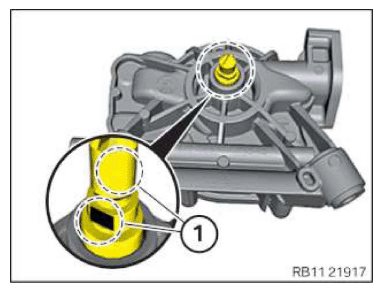

Check the dihedral (arrow) of the oil pump shaft (1) for damage.
The dihedral (arrow) of the oil pump shaft (1) must not be damaged; replace the oil pump if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.
With the help of a second person, counter-hold the oil pump on the special tool 0 493 940 (11 9 280) (2).
Replace nut (1).
Parts: Nut

NOTE: TECHNICAL INFORMATION
The thread is a left-hand thread.

Tighten the nut (1) with the special tool 0 490 504 (00 9 120) .

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUE SPECIFICATIONS

Sprocket to oil pump
M8 Important - left-hand thread Replace screw.	1. Joining torque	5 Nm
	2. Angle of rotation	90°
