When replacing the left and right exhaust turbocharger: Remount components

When replacing the left-hand exhaust turbocharger: Remount components

Unscrew the banjo bolt (1).

Courtesy of BMW OF NORTH AMERICA, INC.

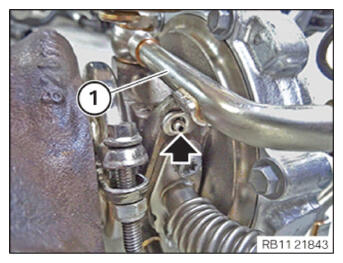

Feed out and remove the coolant pipe (1) from the pin (arrowed).

Courtesy of BMW OF NORTH AMERICA, INC.

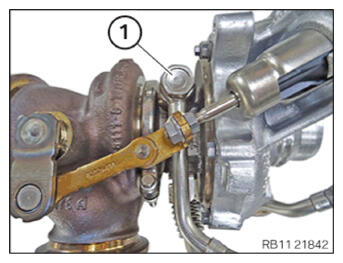

Unscrew the banjo bolt (1).
Loosen screw (2).
Remove the coolant pipe (3).

Courtesy of BMW OF NORTH AMERICA, INC.
Replace the banjo bolt.
Parts: Hollow bolt

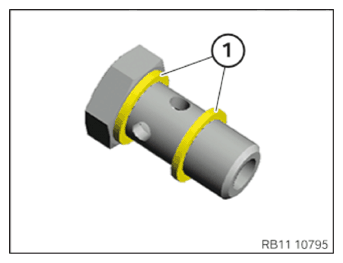

Replace seals (1).
Parts: Seals

Courtesy of BMW OF NORTH AMERICA, INC.
Replace the right exhaust turbocharger.
Parts: Right exhaust turbocharger

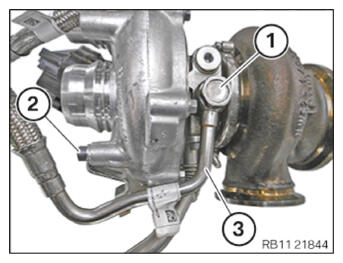

Position the coolant pipe (3).
Position the banjo bolt (1) and screw in several threads.
Hand-tighten the bolt (2).
Tighten the banjo bolt (1).

TIGHTENING TORQUE SPECIFICATIONS

Banjo bolt for coolant pipe to exhaust turbocharger
Hollow bolt Replace the banjo bolt.	Joining torque	8 Nm
Hollow bolt Replace the banjo bolt.	Angle of rotation	60°

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUE SPECIFICATIONS

Coolant line to exhaust turbocharger
M6x16	tightening torque	10 Nm

Replace the banjo bolt.
Parts: Hollow bolt

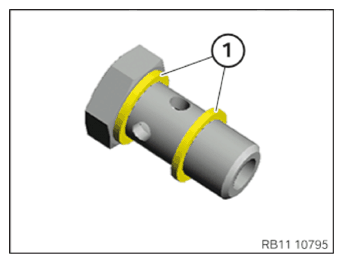

Replace seals (1).
Parts: Seals

Courtesy of BMW OF NORTH AMERICA, INC.

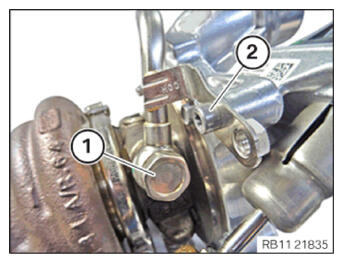

Feed in and position the coolant pipe (1) on the pin (arrowed).

Courtesy of BMW OF NORTH AMERICA, INC.

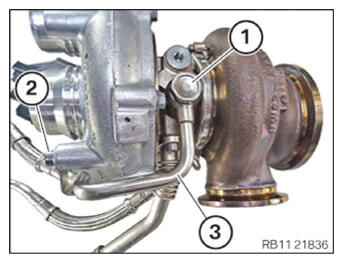

Tighten the banjo bolt (1).

TIGHTENING TORQUE SPECIFICATIONS

Banjo bolt for coolant pipe to exhaust turbocharger
Hollow bolt Replace the banjo bolt.	Joining torque	8 Nm
Hollow bolt Replace the banjo bolt.	Angle of rotation	60°

Courtesy of BMW OF NORTH AMERICA, INC.

When replacing the right exhaust turbocharger: Remount components

TIGHTENING TORQUE SPECIFICATIONS

Banjo bolt for coolant pipe to exhaust turbocharger
Hollow bolt Replace the banjo bolt.	Joining torque	8 Nm
Hollow bolt Replace the banjo bolt.	Angle of rotation	60°

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUE SPECIFICATIONS

Coolant line to exhaust turbocharger
M6x16	tightening torque	10 Nm

TIGHTENING TORQUE SPECIFICATIONS

Banjo bolt for coolant pipe to exhaust turbocharger
Hollow bolt Replace the banjo bolt.	Joining torque	8 Nm
Hollow bolt Replace the banjo bolt.	Angle of rotation	60°

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUE SPECIFICATIONS

Coolant line to exhaust turbocharger
M6x16	tightening torque	10 Nm
