Filling the low-temperature cooling system with the vacuum filling equipment

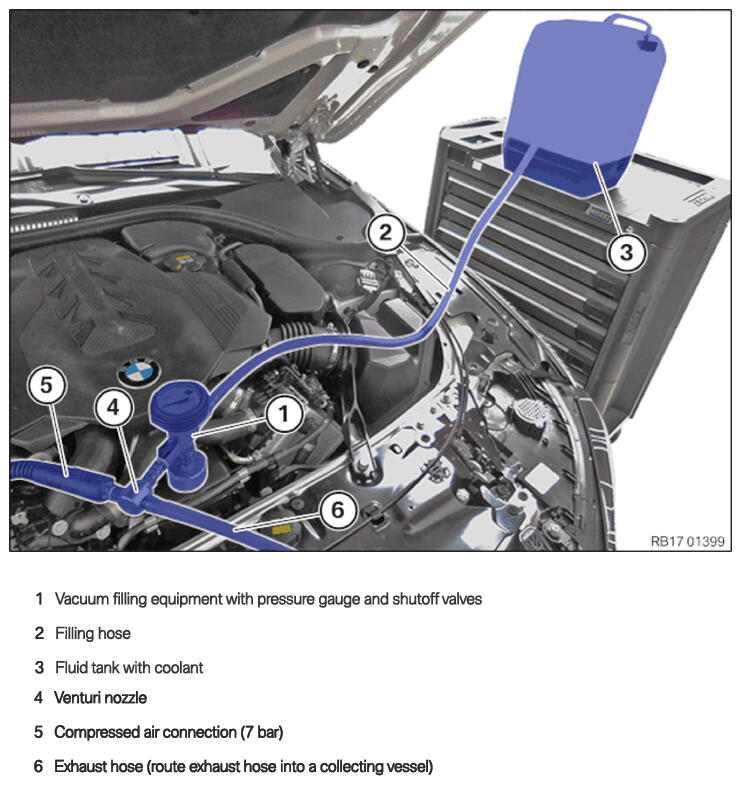

Vacuum filling equipment

Courtesy of BMW OF NORTH AMERICA, INC.

Vacuum filler device - connected to the low-temperature coolant expansion tank

Precondition

The coolant expansion tank for the cooling system must be empty. The fluid tank of the vacuum filling equipment must have a sufficient quantity of premixed coolant, 1 l to 2 l more than the specified capacity for the vehicle. The fluid tank of the vacuum filling equipment must be positioned at the same height as the coolant expansion tank. The compressed air connection must have a pressure of 7 bar. Ignition is switched off.

The vacuum filling equipment must be functional and free of dirt.

NOTE: TECHNICAL INFORMATION
Follow notes for repair work on the cooling system.
For additional information see: NOTES FOR WORKING ON THE COOLING SYSTEM .

NOTE: TECHNICAL INFORMATION
Immobilization period-long fill of coolant!
Do not reuse used coolant.
When replacing and removing components which rely on the corrosion protection effect of the coolant, it is essential to change the coolant. The cooling system must therefore be emptied and refilled.
In the case of other removal work involving the draining of part quantities of coolant, the coolant level must be topped up with new coolant.

NOTE: TECHNICAL INFORMATION
Mixing different coolants is not permitted.

NOTE: TECHNICAL INFORMATION
Filling without the vacuum filling equipment (watering can filling) is not permitted .
If this is not observed, there is a risk of component damage or engine damage.
The filling specification must be observed.
It is essential to visually check the vacuum filling equipment before use to check that it is functioning correctly and clean.
It is not permissible to operate the vehicle if the filling procedure has not been fully completed. Otherwise there may be functional limitations (degradation) or overheating.
A bleeding procedure is required after a part has been exchanged in the cooling system and/or after refilling the cooling system.

NOTE: TECHNICAL INFORMATION
Make sure that the ignition (terminal 15) is switched off prior to creating the vacuum with the vacuum filling equipment.

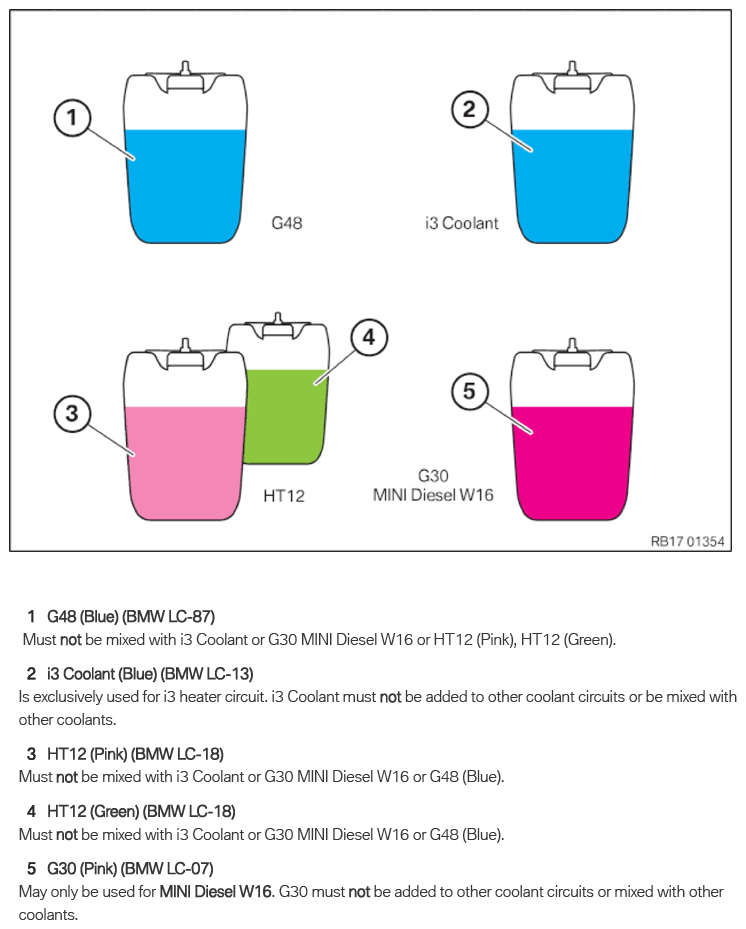

Not the type of coolant

Coolant in the collecting vessel of vacuum filling equipment

Courtesy of BMW OF NORTH AMERICA, INC.

Choose the correct coolant for filling.

In general, a vehicle must be filled with the coolant with which it was delivered from the plant.

NOTE: RISK OF DAMAGE
Damage to the engine or components in high-voltage vehicles
Using the incorrect coolant may lead to corrosion or gel formation in the coolant circuit .

Only use coolant that has been approved for the specific vehicle.
Only fill the vehicle with the coolant with which it was delivered ex works.
Only mix compatible coolants. The color does not allow any statement about coolant compatibility.
Selection of the correct coolant exclusively via the part number.

NOTE: TECHNICAL INFORMATION
When using vacuum filling equipment to fill the coolant circuit, you must use special tool 5 A31 EF2 (strainer) to protect the inside of the coolant circuit from contaminants.

Connect special tool (2) 5 A31 EF2 to the vacuum filling equipment (1).
Connect the special tool (2) with the appropriate adapter (3) from the set of special tools 0 494 417 (17 0 100) .

Courtesy of BMW OF NORTH AMERICA, INC.
Select a suitable adapter (Y) from the set of special tools 0 494 417 (17 0 100) :

Type	Engine	Adapter (Y) from 17 0 100
G11/G12/G14/G15/G16	N63T3	17 0 109

Fill the fluid tank of the vacuum filling equipment with 1 l to 2 l more than the filling capacity of coolant specified for the vehicle.

TECHNICAL DATA SPECIFICATION

Low-temperature coolant circuit filling capacity
	N63B44T3	3.25 l

Connect the selected adapter (Y) to the coolant expansion tank.
Connect the vacuum filling equipment to the connection (X) of the adapter.

Courtesy of BMW OF NORTH AMERICA, INC.
Check whether both shutoff valves (A) and (B) of the vacuum filling equipment (1) are closed.
Connect and lock connection (X) to the coolant expansion tank.

Courtesy of BMW OF NORTH AMERICA, INC.
Connect Venturi nozzle (1) to the vacuum filling equipment (2).
(X) is the connection on the coolant expansion tank.

Courtesy of BMW OF NORTH AMERICA, INC.
Connect compressed air (1).
(X) is the connection on the coolant expansion tank.

Courtesy of BMW OF NORTH AMERICA, INC.
Open shutoff valve (B).
The venturi nozzle generates a flow noise.

Courtesy of BMW OF NORTH AMERICA, INC.
Open shutoff valve (A) until the filling hose (1) is full without bubbles.
Close the shutoff valve (A) again.
» The filling hose (1) has now been bled.

Courtesy of BMW OF NORTH AMERICA, INC.

Check the coolant hoses for porosity and, if necessary, replace them.

NOTE: TECHNICAL INFORMATION
The coolant hoses contract during vacuum build-up.

After a vacuum of -0.8 to -0.95 bar is reached in the coolant circuit (approx. 2 min), close shutoff valve (B).

Courtesy of BMW OF NORTH AMERICA, INC.
Check whether shutoff valves (A) and (B) are closed.
Disconnect the Venturi nozzle (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Check
The vacuum in the coolant circuit must be maintained for at least 2 min.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» Vacuum drops.

Measure

Search for leaks, repair them, and start the filling procedure from the beginning.

Check

The vacuum in the coolant circuit must be maintained for at least 2 min.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» Vacuum remains constant.

Measure
- Continue with filling.
Keep shutoff valve (B) closed during the filling process.
To fill the cooling system, open shutoff valve (A) to the fluid tank of the vacuum filling equipment.

Courtesy of BMW OF NORTH AMERICA, INC.
Stop the filling procedure when the needle in the pressure tester is on 0 bar or it no longer drops.
If necessary, reduce remaining vacuum. To do so, open the shutoff valve (B).

Courtesy of BMW OF NORTH AMERICA, INC.
Remove the vacuum filling equipment with the adapter from the low-temperature coolant expansion tank (1).
Adjust the coolant level in the low-temperature coolant expansion tank (1) to the lower edge of the coolant filler neck (2) of the low-temperature coolant expansion tank (1).
After filling the engine cooling system using vacuum filling equipment, carry out the cooling system bleeding procedure also .

Courtesy of BMW OF NORTH AMERICA, INC.
