Installing the blow-off valve of cylinder bank 2

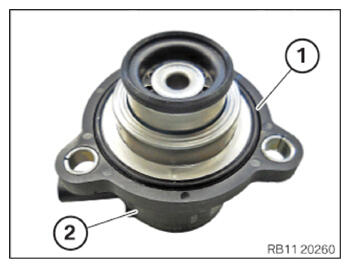

• Check the seal (1) for damage. If necessary, replace the blow-off valve (2).

  Parts:  Blow-off valve

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position the blow-off valve of cylinder bank 2.
• Position all screws manually.

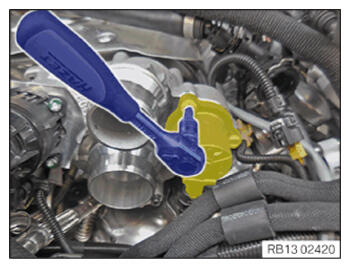

• Tighten screw.

Courtesy of BMW OF NORTH AMERICA, INC.

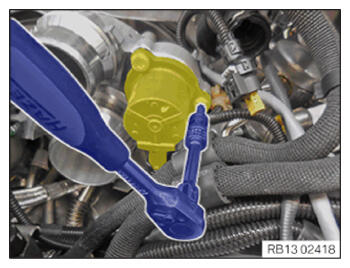

• Tighten screw.

Courtesy of BMW OF NORTH AMERICA, INC.

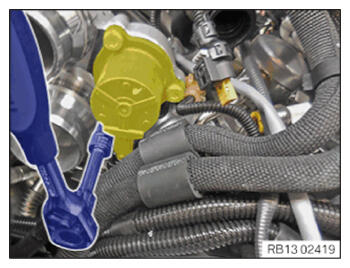

• Tighten screw.

Courtesy of BMW OF NORTH AMERICA, INC.

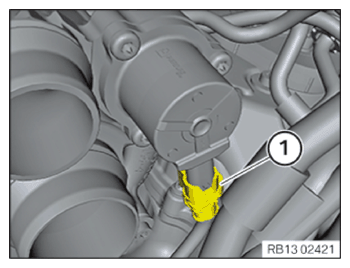

• Connect connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE CLEAN AIR PIPE OF CYLINDER BANK 2 .
• Refer to CONNECTING THE LEFT CHARGE AIR LINE TO THE TURBOCHARGER .
• Refer to INSTALLING THE COVER OF THE LEFT DME CONTROL UNIT .
• Refer to INSTALLING ACOUSTIC COVER .
