Install the engine bridge

WARNING: Hot surfaces.
Risk of burning!

Perform all work only on components that have cooled down.

WARNING: Hot fluids.
Risk of scalding!

Conduct all work in the vehicle wearing appropriate personal protective equipment only.

WARNING: Hot exhaust system.
Risk of burning!

Any work must exclusively be carried out with an exhaust system that has cooled down.

Preliminary work

Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
Refer to BRINGING FRONT COMPARTMENT LID IN THE SERVICE POSITION .
Refer to REMOVING THE CENTER ENGINE COMPARTMENT COVER .
Refer to REMOVING THE COVER OF THE ENGINE COMPARTMENT AT THE REAR LEFT .
Refer to REMOVING THE COVER OF THE REAR RIGHT ENGINE COMPARTMENT .
Refer to REMOVING THE ACOUSTIC COVER .
Refer to REMOVING THE COVER PANEL OF THE LEFT DME CONTROL UNIT .
Refer to REMOVING THE CONTROL UNIT BRACKET FOR CYLINDERS 5 TO 8 .

Prepared engine bridge

G14191112

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen the sealing cap (1) from the coolant expansion tank.

Courtesy of BMW OF NORTH AMERICA, INC.
Unlock plug connection (1) and disconnect.
Unclip the wiring harness at the wiring harness mounting (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Disconnecting the coolant hoses (1) from the coolant expansion tank (2) with standard clamping pliers.

G14251577

Courtesy of BMW OF NORTH AMERICA, INC.

Draw off the coolant with a standard syringe.

Courtesy of BMW OF NORTH AMERICA, INC.
Unlock and disconnect the coolant line (1) from the coolant expansion tank (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Unlock and disconnect the coolant line (1) from the coolant expansion tank (2).

G14251580

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and disconnect the coolant line (1) from the coolant expansion tank (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screws (1).
Unclip the coolant line from the bracket in the region (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Version with a gasoline particulate filter:

Feed the cable (1) out of the brackets toward the front.

Remove the rear hood seal (2) from the guide toward the inside.

G14251583

Courtesy of BMW OF NORTH AMERICA, INC.

Version with a gasoline particulate filter:
Loosen screws (1).
Carefully slide the coolant expansion tank (2) upwards and to the front.

Courtesy of BMW OF NORTH AMERICA, INC.
Version with a gasoline particulate filter:
Loosen screw (1).

Pull the holder of the gasoline particulate sensor (2) upwards and out of the guide.

Courtesy of BMW OF NORTH AMERICA, INC.
Release the wiring harness mounting at the snap-in lug (1) and put it aside.

G14251586

Courtesy of BMW OF NORTH AMERICA, INC.

Working upwards, unclip the engine ventilation line (1).
Unclip the wiring harness from the attachments (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Version with a gasoline particulate filter:
Release the screws (3).

Release the wiring harness mountings (2).

Set aside the holder (1) of the gasoline particulate sensor.

Courtesy of BMW OF NORTH AMERICA, INC.
Version with a gasoline particulate filter:

Loosen screw (1).

Slide the holder of the gasoline particulate sensor (2) with the gasoline particulate sensor (2) towards the rear.

G14251589

Courtesy of BMW OF NORTH AMERICA, INC.

Version with a gasoline particulate filter:
Unclip cable (1) of the Lambda oxygen sensor from the holder.

Unclip wiring harness (2).

Unclip intake line (3).

Unclip the cable of the Lambda oxygen sensor from the bracket (4).

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Unclip the transmission wiring harness from the bracket (1).
Unclip the plug connector (2) upwards from the heat shield.

G14251455

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip the cable of the Lambda oxygen sensor from the bracket (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Unlock and disconnect the engine ventilation line from the retaining clip in the region of (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Release the hose clamps (1).
Remove the bellows (2).

G14251655

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connection (1) and disconnect.

Courtesy of BMW OF NORTH AMERICA, INC.
Unclip the cable of the Lambda oxygen sensor from the bracket (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Unlock plug connection (1) and disconnect.

G14251450

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and disconnect the engine ventilation line from the retaining clip in the region of (1).
Feed the connector (2) of the Lambda oxygen sensor through.

Courtesy of BMW OF NORTH AMERICA, INC.
Unclip the wiring harness mounting (1) at the heat shield.

Courtesy of BMW OF NORTH AMERICA, INC.
Unclip the wiring harness mounting (1) at the heat shield.
Lift out heat shield.

G14251457

Courtesy of BMW OF NORTH AMERICA, INC.

Remove the expanding rivet (1).
Remove clips (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Remove lid (1) of the washer fluid reservoir to the top.
Remove seal (2) of the side panel.

Courtesy of BMW OF NORTH AMERICA, INC.
Remove the expanding rivet (1).
Remove clips (2).
Remove Bowden cables (3) from the side panel seal.
Remove the side panel seal.

G14251604

Courtesy of BMW OF NORTH AMERICA, INC.

Release the expanding rivet (2).
Remove the hood seal on the side (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Release the wiring harness mountings (1).
Release the expanding rivet (3).
Remove the hood seal on the side (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Release the screws in areas (1).

G14251607

Courtesy of BMW OF NORTH AMERICA, INC.

Prepare special tool 0 490 567 (11 0 020) .

Courtesy of BMW OF NORTH AMERICA, INC.
Mount special tools 2 365 070 and 0 496 438 (00 6 053) on profile strips 0 496 436 (00 6 051) .

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Description is for left component only. Procedure on the right side is identical.
Position the special tool 0 496 438 (00 6 053) on the shock towers as shown.

G14251610

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Description is for left component only. Procedure on the right side is identical.

Position the special tool 2 365 070 on the lock support as shown.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
Conduct the following operation with the assistance of a second person.
Carefully position engine bridge (1) with the special tool 0 490 567 (11 0 020) with help from an assistant.

Courtesy of BMW OF NORTH AMERICA, INC.
If necessary, release the nuts (1) and position the engine bridge (2).

G14251613

Courtesy of BMW OF NORTH AMERICA, INC.

Remove the front left and right wheels

NOTE: Perform the steps on the left and right side.

Removing the wheel

NOTE: RISK OF DAMAGE
A wheel lifter is recommended for easier wheel removal and installation without exertion.

G14251614

Courtesy of BMW OF NORTH AMERICA, INC.

In vehicles with M Carbon ceramic brake: It is essential to use the wheel lifter to remove the wheel.
This process is intended to prevent damage to the brake disc.
If several wheels are removed simultaneously: Use a piece of chalk to mark on each tire the axle and side on which the corresponding wheel is fitted.
Release the lug bolts (arrows) crosswise and remove the wheel.
For releasing and tightening lug bolts with the security code: Use the correct adapter from the set of special tools 0 492 518 (36 1 300) .

G09878114

Courtesy of BMW OF NORTH AMERICA, INC.

Remove the cover of the steering assembly on the left and right

NOTE: Description is for left component only. Procedure on the right side is identical.

Remove the cover of the steering assembly

NOTE: To provide a better overview: Schematic diagram with partially hidden components.

Release all bolts (arrows).
Remove cover (1).

G14251616

Courtesy of BMW OF NORTH AMERICA, INC.

Removing both rear sections of the front wheel arch covers

NOTE: The operations shown only for one side must be carried out on both sides.

NOTE: To provide a better overview: Schematic diagram with partially hidden components.

Loosen the expanding rivet (1).
Remove screws (arrows).
Guide out the rear section of the front wheel arch cover and remove.

G15633325

Courtesy of BMW OF NORTH AMERICA, INC.

Remove the rear section of the wheel arch cover on the front left and right

NOTE: Perform the steps on the right and left side.

Removing the rear section of the front wheel arch cover front

NOTE: To provide a better overview: Schematic diagram with partially hidden components.

Loosen the expanding rivet (1).
Remove screws (arrows).

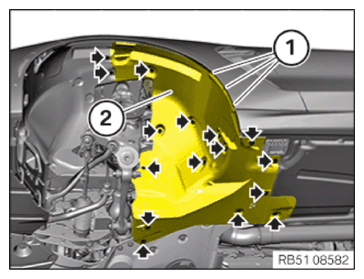

Guide out and remove rear section (2) of the front wheel arch cover.

Courtesy of BMW OF NORTH AMERICA, INC.
Release screw (1) of the right engine mount with standard tool.

G14251618

Courtesy of BMW OF NORTH AMERICA, INC.

Prepare tools:
1. Torx socket E12
2. Reduce from 1/2 inch to 3/8 inch
3. Groove 12.5°
4. Short extension of 1/2 inch
5. 1/2" reversible ratchet
Courtesy of BMW OF NORTH AMERICA, INC.
Release the screw (1) of the left engine mount with the prepared tool.

Courtesy of BMW OF NORTH AMERICA, INC.
Lift the engine by 10 mm by turning the special tool 2 361 506 (00 6 103) (1) with the special tool 0 490 567 (11 0 020) .

G14251621
