Removing the engine from the lifting table

NOTE: RISK OF DAMAGE
Engine damage due to missing motor oil.
Missing motor oil following repairs to the components in the oil circuit or replacement of the engine can lead to damage to the engine.

Following repairs to components in the oil circuit or replacement of the engine, do not start the engine without observing the repair notes. For additional information, see: REPAIR NOTES FOR CYLINDER HEAD OR ENGINE REPLACEMENT .

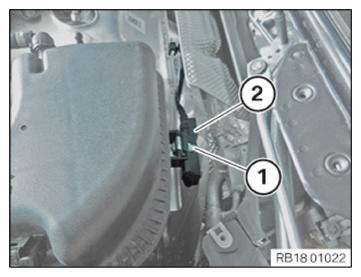

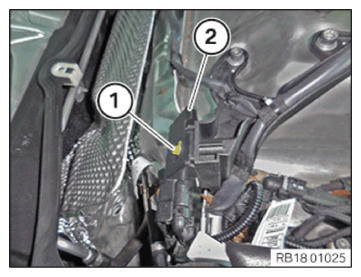

Loosen screw (1).
Remove the cover of the gasoline particulate filter sensor (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screw (1).
Remove the cover of the gasoline particulate filter sensor (2).

Courtesy of BMW OF NORTH AMERICA, INC.

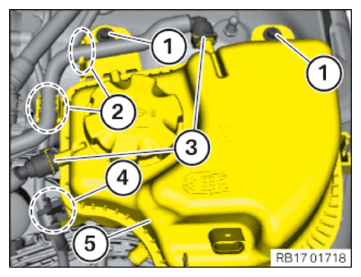

Unlock and disconnect the coolant ventilation line (3).
Unclip the coolant ventilation line in area (2) from the brackets.
Unclip wiring harness mounting (4).
Loosen screws (1).
Thread out coolant expansion tank (5) and remove.

G14251444

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip the cable of the Lambda oxygen sensor from the bracket (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Unlock and disconnect the engine ventilation line from the retaining clip in the region of (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Unlock plug connection (1) and disconnect.
Feed out the right Lambda oxygen sensor and remove it.

Courtesy of BMW OF NORTH AMERICA, INC.
Release the left Lambda oxygen sensor (1) with the special tool 0 491 074 (11 7 020) .
Release the right Lambda oxygen sensor cable in area (1) from the cable bracket.

G14251448

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip the cable of the Lambda oxygen sensor from the bracket (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Unlock plug connection (1) and disconnect.

Courtesy of BMW OF NORTH AMERICA, INC.
Unlock and disconnect the engine ventilation line from the retaining clip in the region of (1).
Feed the connector (2) of the Lambda oxygen sensor through.

Courtesy of BMW OF NORTH AMERICA, INC.
Release the left Lambda oxygen sensor (1) with the special tool 0 491 074 (11 7 020) .
Release the left Lambda oxygen sensor cable in area (2) from the cable bracket.

G14251452

Courtesy of BMW OF NORTH AMERICA, INC.

Working upwards, unclip the engine ventilation line (1).
Unclip the wiring harness from the attachments (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Unclip the transmission wiring harness from the bracket (1).
Unclip the plug connection (2) from the heat shield upwards.
Loosen screws (3).

Courtesy of BMW OF NORTH AMERICA, INC.
Unclip the wiring harness mounting (1) at the heat shield.

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip the wiring harness mounting (1) at the heat shield.
Lift out heat shield.

Courtesy of BMW OF NORTH AMERICA, INC.

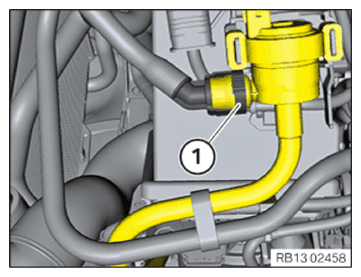

Unlock and disconnect the quick-release coupling (1).

Courtesy of BMW OF NORTH AMERICA, INC.

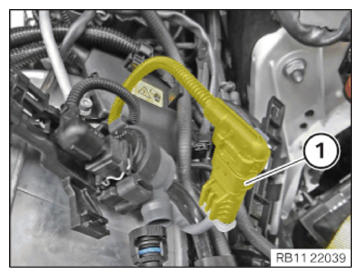

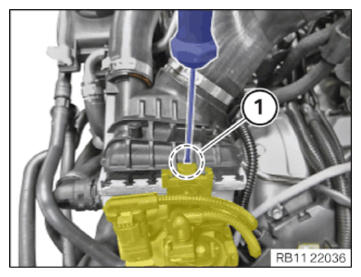

Unlock the bracket in area (1) with a suitable screwdriver.

Courtesy of BMW OF NORTH AMERICA, INC.

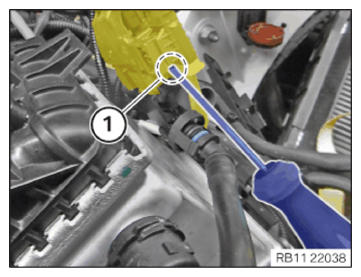

Unlock the detent of the plug connection in area (1) with a suitable screw driver.
Push the plug connection forwards.

G14251460

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connection (1) and disconnect.

Courtesy of BMW OF NORTH AMERICA, INC.

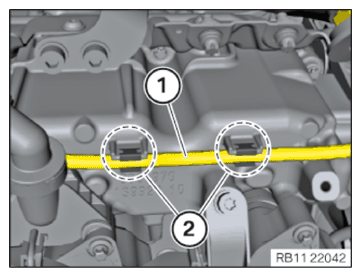

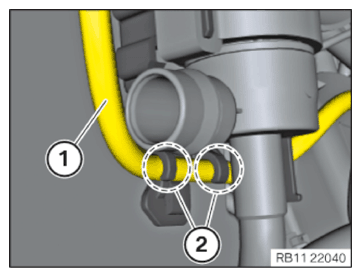

Unclip the cable (1) of the oxygen sensor monitor from the holders (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Unclip the cable (1) of the oxygen sensor monitor from the holders (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Unclip the cable (1) of the oxygen sensor monitor from the holders (2).

G14251464

Courtesy of BMW OF NORTH AMERICA, INC.

Release retaining clip (1).
Wipe off the heat protection wire ring (2) over the oxygen sensor monitor.
Release and remove the oxygen sensor monitor with the special tool 0 491 074 (11 7 020) .

Courtesy of BMW OF NORTH AMERICA, INC.

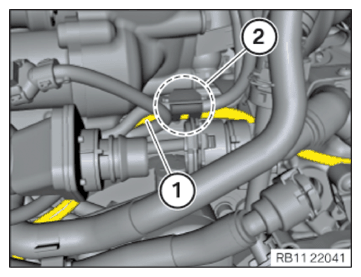

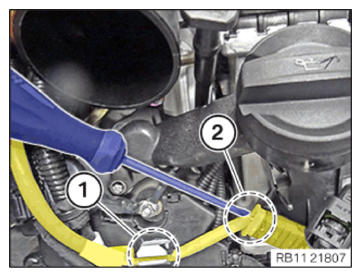

Unlock the detent of the plug connection in area (2) with a suitable screw driver.
Push the plug connection forwards.
Unclip cable of oxygen sensor monitor probe from the clamp (1).

Courtesy of BMW OF NORTH AMERICA, INC.

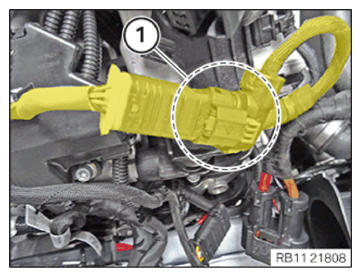

Unlock plug connection (1) and disconnect.

Courtesy of BMW OF NORTH AMERICA, INC.

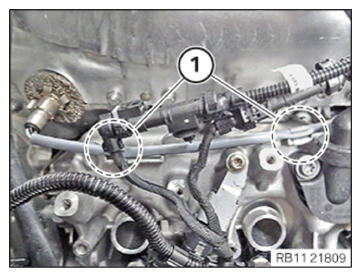

Unclip cable of the oxygen sensor monitor probe from the clamps (1).

G14251468

Courtesy of BMW OF NORTH AMERICA, INC.

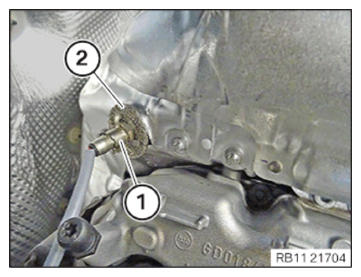

Release retaining clip (1).
Pull the heat protection wire ring (2) off over the oxygen sensor monitor.
Release oxygen sensor monitor probe with the special tool 0 491 074 (11 7 020) .
Remove oxygen sensor monitor probe.

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screws (1).
Remove upper heat shield (2).

Courtesy of BMW OF NORTH AMERICA, INC.

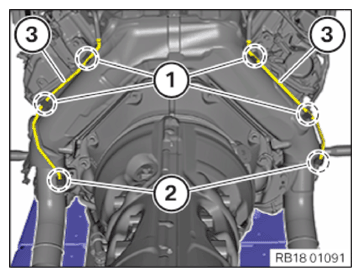

Version with a gasoline particulate filter:
Release union nuts (2).

Unclip the pressure lines (3) from the retaining clips in the areas (1).

Courtesy of BMW OF NORTH AMERICA, INC.

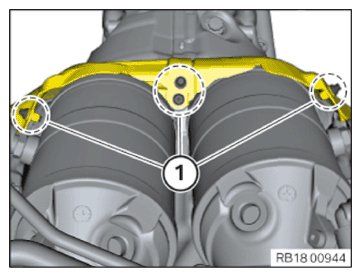

Loosen screws (1).

G14251472

Courtesy of BMW OF NORTH AMERICA, INC.

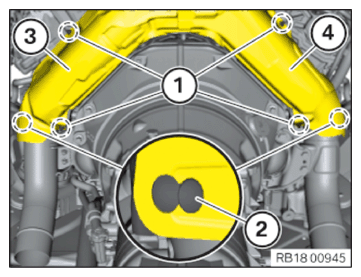

Loosen screws (1).
Feed out the heat shield (3) and (4) at the retaining tabs (2).

Courtesy of BMW OF NORTH AMERICA, INC.

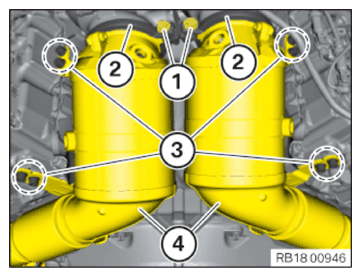

Release the screws (1) at the V-ribbon clips (2).
Release the screws in the area (3) at the catalytic converters (4).

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen nuts (1).
Loosen screws (2).
Feed out and remove the catalytic converters (3).

Courtesy of BMW OF NORTH AMERICA, INC.
Unlock and disconnect the plug connection (1) from the transfer box (TB).
Release the wiring harness mountings (2).
Unlock and disconnect the plug connection (3) from the automatic transmission.
Release the screw in area (4).
Remove ground cable.

G14251476

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock the heat shield (2) on the push-button (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Unlock plug connection (1) and disconnect.

Courtesy of BMW OF NORTH AMERICA, INC.
Lash the transmission (2) with commercially available tensioning strap (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen nut (1).

G14251480

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen screw (1).
Release the hydraulic lines (2) from transmission oil cooler in the arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screws (1).
Lay the front prop shaft (2) downwards.

Courtesy of BMW OF NORTH AMERICA, INC.
Remove cover (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Release converter bolt (1).

The crankshaft at central bolt may only be turned clockwise.

G14251484

Courtesy of BMW OF NORTH AMERICA, INC.

Prepare the special tool 0 494 451 (24 4 160) (1) with the special tool 0 494 622 (24 4 164) (2) as shown.

Courtesy of BMW OF NORTH AMERICA, INC.
Insert special tool 0 494 451 (24 4 160) into the recess of the transmission housing and apply slight tension using the screw (1).
Screw the bolt (2) in to the stop.
Tighten down screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Support engine.
Loosen the screws (arrows) and remove the transmission.

Courtesy of BMW OF NORTH AMERICA, INC.
Release the retaining screws (1) on both sides of the lifting table (2).

G14251488

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
Check the plastic components of the locking mechanism or clamp for damage.
Replace the charge air ducts with damaged plastic components on the locking mechanism.

Unlock lock (1).
Detach the right charge air line (2) from the exhaust turbocharger and set it aside.

Courtesy of BMW OF NORTH AMERICA, INC.
Using suitable screwdrivers (3), lever the retaining clips (1) upwards and unclip from the surrounding guides (2).
Retention of the retaining clip (2) in the unlocking position is not possible due to design reasons.
Remove clean air pipe of bank 2 (4).

Courtesy of BMW OF NORTH AMERICA, INC.
Secure engine on engine mounting bracket with a workshop crane and special tool 0 490 567 (11 0 020) .

Courtesy of BMW OF NORTH AMERICA, INC.
Slide transmission (1) to the rear and disconnect from the engine.

G14251521

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
Collect and dispose of emerging fluids.
Observe country-specific waste disposal regulations.

Variant with coolant radiator:
Release nuts (1).

Pull off the coolant lines (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screw (1).

G14251495

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The operations shown only for one side must be carried out on both sides.

Hand-tighten the screws (1).
Release the central bolt of the output shaft.
Remove the swivel bearing mount (2) and set it aside.
Hold the swivel bearing (3) with the special tool 2 220 718 .

G14251496

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The operations shown only for one side must be carried out on both sides.

Loosen screw (1).
Tilt the swivel bearing (2) slightly forwards in the direction of the arrow.
Loosen and remove the output shaft (3) at the front axle differential with a suitable tool.

Courtesy of BMW OF NORTH AMERICA, INC.
Lift engine with a workshop crane (1) and the special tool 0 490 567 (11 0 020) out of the engine mounts.

G14251498

Courtesy of BMW OF NORTH AMERICA, INC.
