Installing the decorative strip on the dashboard
NOTE:
TECHNICAL INFORMATION
Detents, guides and mounting elements must not be damaged or missing.
Detents, guides and mounting elements must not be damaged or missing.

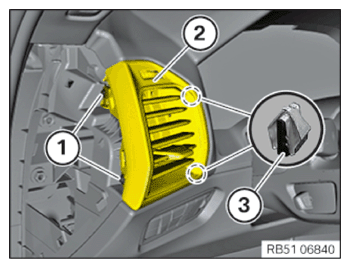

- Position decorative strip (2).
- Connect and lock the present connectors.
- Engage the decorative strip (2) on the clamps (3).
- Tighten the screws (1) on the decorative strip (2) at side.
TIGHTENING TORQUES SPECIFICATION
| Decorative strip on the dashboard | ||
|---|---|---|
| Screw | tightening torque | 1.8 Nm |
Follow-up work
