Removing the A-pillar trim panel
NOTE:
RISK OF DAMAGE
Careless handling of tools and sharp-edged components .
Scratches, surface damage .
Careless handling of tools and sharp-edged components .
Scratches, surface damage .
- Protect working area.
- Handle tools and components carefully.
WARNING:
Pyrotechnic components
.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- All work on pyrotechnic parts may be carried out by technically experienced and appropriately trained personnel only.
- Replace any damaged part or ones that have been dropped.
- For additional information see: SAFETY REGULATIONS ON HANDLING AIRBAG SYSTEM COMPONENTS/GAS GENERATORS .
NOTE:
RISK OF DAMAGE
Damage to the head airbag .
Improper use of a tool when removing the trim panel may damage the head airbag .
Damage to the head airbag .
Improper use of a tool when removing the trim panel may damage the head airbag .
- Do not use sharp-edged tools when removing the trim panel.

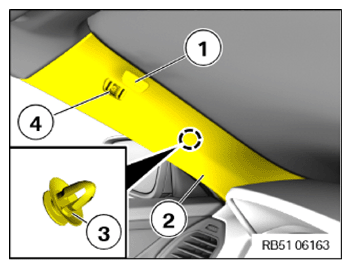

- Unclip the cover (1).
- Loosen screw (4).
- Unclip the A-pillar trim panel (2) from the clip (3) and feed out towards the top.
