Install A-pillar trim panel
WARNING:
Pyrotechnic components
.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- All work on pyrotechnic parts may be carried out by technically experienced and appropriately trained personnel only.
- Replace any damaged part or ones that have been dropped.
- For additional information see: SAFETY REGULATIONS ON HANDLING AIRBAG SYSTEM COMPONENTS/GAS GENERATORS .
NOTE:
RISK OF DAMAGE
Damage to the head airbag .
Improper use of a tool when removing the trim panel may damage the head airbag .
Damage to the head airbag .
Improper use of a tool when removing the trim panel may damage the head airbag .
- Do not use sharp-edged tools when removing the trim panel.
Check

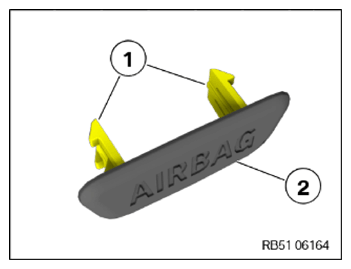

- Check the snap-in lug (1) of the cover (2) for damage.
Result
Snap-in lugs (1) are damaged.
Measure
- Replace the cover (2).
Parts: cover panel
- Check the clip (3) for damage and replace if necessary.

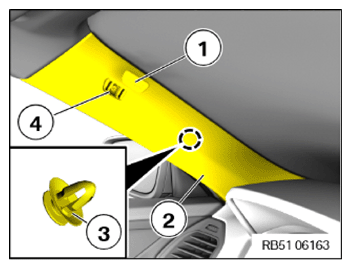

- Clip in A-pillar trim panel (2) with the clip (3).
- Tighten down screw (4).TIGHTENING TORQUES SPECIFICATION
A-pillar trim panel to body Screw 4.8x18 Tightening torque 3 Nm - Clip in the cover (1).
