Remove the lower B-pillar trim panel
NOTE:
Description is for left component only. Procedure on the right side is identical.
Preliminary work
- Refer to REMOVING REAR ENTRANCE COVER STRIP .
- Refer to REMOVING THE INNER DOOR SILL COVER STRIP .
- Refer to REMOVING THE CENTER B-PILLAR TRIM PANEL .

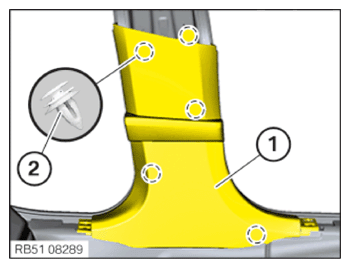

- Detach the B-pillar trim panel (1) from the clips (2) and remove toward the inside.
