Install the lower B-pillar trim panel

Check

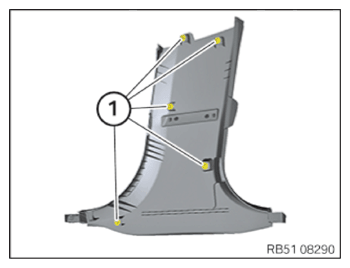

• Check the clips (1) for damage and availability.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

The clips (1) are damaged or missing.

Measure

• Replace broken or missing clips (1).

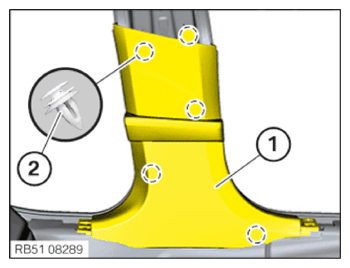

• Insert the B-pillar trim panel (1).
• Snap-in the B-pillar trim panel (1) at the clips (2).
• Check the B-pillar trim panel (1) for correct fit in relation to the front and rear edge protection.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE CENTER B-PILLAR TRIM PANEL .
• Refer to INSTALLING THE INNER DOOR SILL COVER STRIP .
• Refer to INSTALLING THE REAR DOOR SILL COVER STRIP .
