Remove the B-pillar trim panel upwards
NOTE:
Description is for left component only. Procedure on the right side is identical.
Remove the center B-pillar trim panel

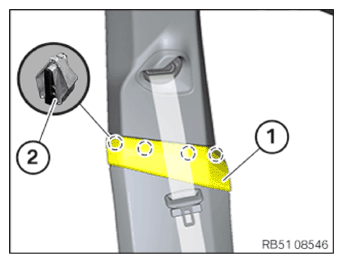

- Disengage the center B-pillar trim panel (1) from the clamps (2) toward the inside and remove it.
- Adjust the front seat completely to the front and top.

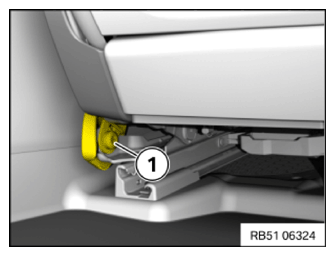

- Loosen screw (1).
- Remove end lining.

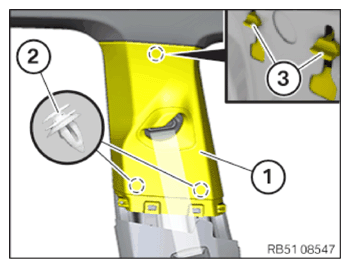

- Unclip upper B-pillar trim panel (1) at the clips (2).
- Feed out upper B-pillar trim panel (1) from the guides (3) downwards.
- Feed out upper B-pillar trim panel (1) at the respective edge protection at front and rear.
- Feed upper seat belt out of upper B-pillar trim panel (1).
- Remove the upper B-pillar trim panel (1).
