Install B-pillar trim panel

• Check the clips (1) for damage and replace where required.

  Courtesy of BMW OF NORTH AMERICA, INC.

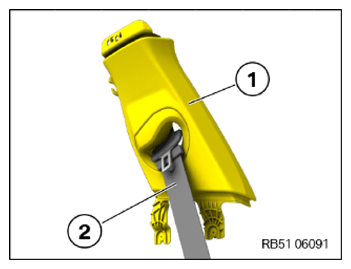

• Feed the upper seat belt (2) into the B-pillar trim panel (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Feed the B-pillar trim panel (1) into the guides (3) in arrow direction and under the lip of the edge protection.
• Clip the B-pillar trim panel in (1) with the clips (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

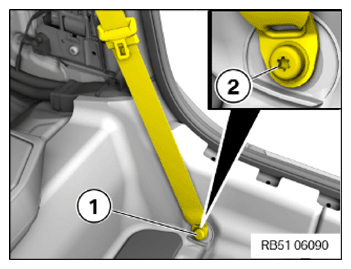

• Tighten down screw (2).
  TIGHTENING TORQUES SPECIFICATION



  End lining to body
  screw	Tightening torque	42 Nm

• Install the protective cap (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING REAR TRIM PANEL .
• Refer to INSTALLING THE INNER DOOR SILL COVER STRIP .
• Refer to INSTALLING THE REAR SEAT .
