Install tweeter

Check

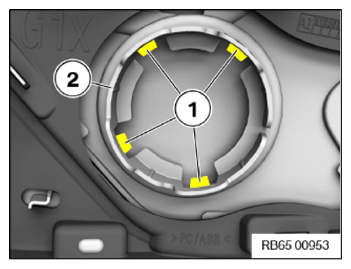

• Check the detents (1) on the decorative trim (2) for damage.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

Detent is damaged.

Measure

• Replace decorative trim.

• Install tweeter (3) in the decorative trim (2) and clip in the detents (1).

Installing the tweeter (for optional equipment S6F1A)

Courtesy of BMW OF NORTH AMERICA, INC.

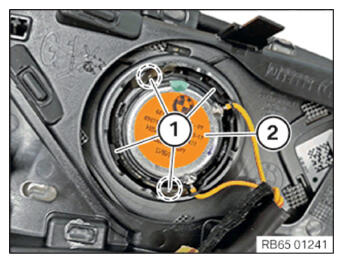

• Install the tweeter (2).
• Lock the locks (1).
• Adhere the locks in the marked areas with a suitable hot-melt adhesive.

Courtesy of BMW OF NORTH AMERICA, INC.
