Installing the control unit for self-locking differential

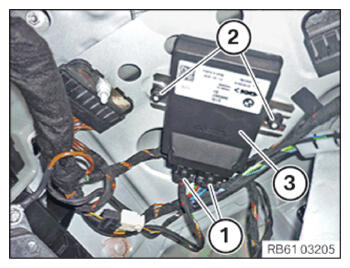

- Position the control unit for the self-locking differential^) and tighten the nuts (2).TIGHTENING TORQUES SPECIFICATION
Control unit for self-locking differential Plastic nut with flange tightening torque 2.6 Nm - Connect plug (1).

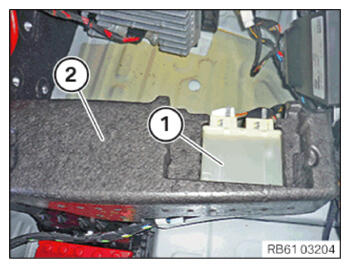

- Install the shaped part (2).
- Install the Personal Digital Communication control unit (1).
Follow-up work
- Refer to INSTALLING LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON RIGHT .
- Refer to INSTALLING LOADING EDGE TRIM .
- Refer to INSTALLING LUGGAGE COMPARTMENT FLOOR COVERING .
- Refer to CONNECTING ALL BATTERY GROUND LEADS .
- Refer to ENCODING/PROGRAMING CONTROL UNIT(S) .
- Refer to IF PROGRAMMING/CODING HAS FAILED: READING DATA FROM REAR AXLE DIFFERENTIAL .
- Refer to WHEN REPLACING (CONTROL UNIT): PERFORMING SERVICE FUNCTION "SELF-LOCKING DIFFERENTIAL CONTROL UNIT REPLACEMENT" .
