Replacement: Remounting the rubber mount

Remove the rubber mount (2) from the anti-roll bar.

Courtesy of BMW OF NORTH AMERICA, INC.
- Checking the rubber mount for damage
Check

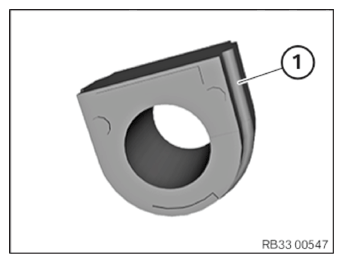

Check the rubber mount (1) for damage.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» The rubber mount (1) is damaged.

Measure
Replace the rubber mount (1).
- Installing the rubber mount on the anti-roll bar
NOTE: TECHNICAL INFORMATION
Keep the anti-roll bar clean and free from oil and grease.

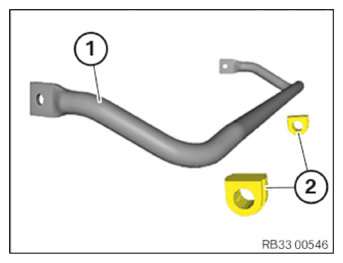

Install the rubber mount (2) on the anti-roll bar (1).

Courtesy of BMW OF NORTH AMERICA, INC.
