Installing the front rubber mount for the rear axle support
NOTE:
Description is for left component only. Procedure on the right side is identical.

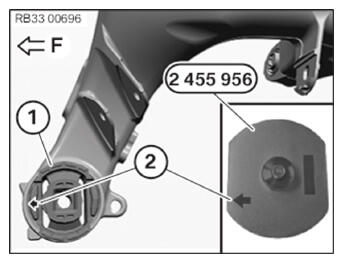

Alignment of the front rubber mount on rear axle support
- Align front rubber mount (1)
in direction of travel by means of the arrow on special tool 2 455 956
or on rubber mount (2)
.
F = driving direction
(View of the rear axle support from above)

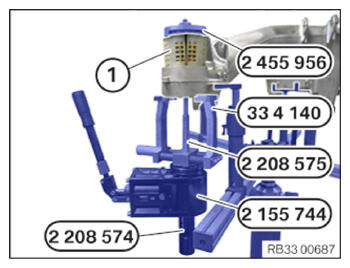

- Insert the rubber mount (1) into the rear axle support using special tools 2 455 956 0 492 397 (33 4 140) 2 208 575 2 155 744 and 2 208 574 .
- Remove the special tools.
