Remove thrust arm
WARNING:
Vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly
.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Observe safety instructions on raising the vehicle using a vehicle hoist.
- For additional information see: RAISING THE VEHICLE WITH A VEHICLE LIFT .
NOTE:
RISK OF DAMAGE
Damage to components on the rear axle .
Removing both thrust arms simultaneously may lead to serious damage to the rear axle .
Damage to components on the rear axle .
Removing both thrust arms simultaneously may lead to serious damage to the rear axle .
- Only remove or replace thrust arms individually.
- When lowering or removing the rear axle: Support the rear axle support before both thrust arms are removed.
Preliminary work
- Refer to REMOVING REAR TORSION STRUT .
NOTE:
RISK OF DAMAGE
Damage to components on the rear axle .
Removing both thrust arms simultaneously! may lead to serious damage to the rear axle .
Damage to components on the rear axle .
Removing both thrust arms simultaneously! may lead to serious damage to the rear axle .
- Only remove or replace thrust arms individually.
- When lowering or removing the rear axle: Support the rear axle support before both thrust arms are removed.

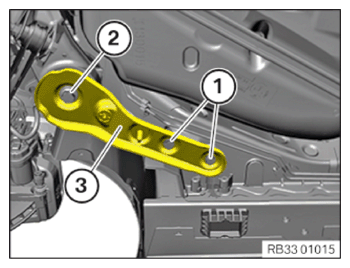

- Release screws (1) and (2).
- Remove thrust arm (3).
