Removing the rubber mount for the camber control arm
WARNING:
Vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly
.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Observe safety instructions on raising the vehicle using a vehicle hoist.
- For additional information see: RAISING THE VEHICLE WITH A VEHICLE LIFT .
NOTE:
TECHNICAL INFORMATION
Perform wheel alignment after installation.
Perform wheel alignment after installation.
Preliminary work
- Refer to REMOVING THE COVER OF THE CAMBER CONTROL ARM .
- Refer to PARTIALLY REMOVING THE CAMBER CONTROL ARM .

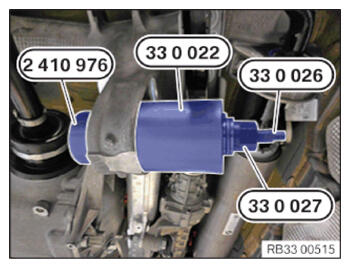

- Pull out rubber mount with special tools 2 410 976, 0 496 501 (33 0 022), 0 496 505 (33 0 026) and 0 496 506 (33 0 027)
