Install the cover of the camber control arm

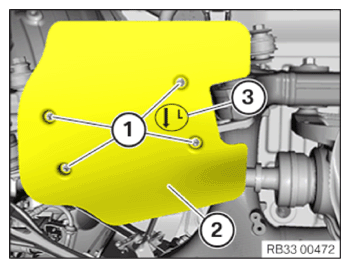

- Correctly position the cover of the camber link (2) on the camber link. Note the direction of installation while doing so.
The arrow (3) must point in the driving direction.
- Replace nuts (1).
Parts: Nuts
- Tighten the screws or the nuts (1).TIGHTENING TORQUES SPECIFICATION
Cover to camber control arm M6
Replace nuts.tightening torque 6 Nm
