Remove the control link

WARNING: Vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly .
Danger! Immobilization period-threatening injuries!

Observe safety instructions on raising the vehicle using a vehicle hoist.
For additional information see: RAISING THE VEHICLE WITH A VEHICLE LIFT .

NOTE: TECHNICAL INFORMATION
Perform wheel alignment after installation.

Preliminary work

Refer to REMOVING THE WHEEL .
Refer to REMOVING THE COVER OF THE CAMBER CONTROL ARM .

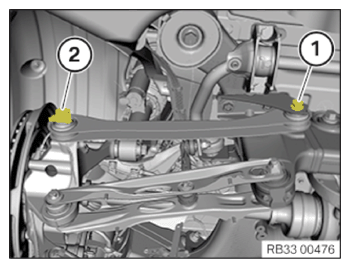

Loosen screws (1) and (2).

Courtesy of BMW OF NORTH AMERICA, INC.

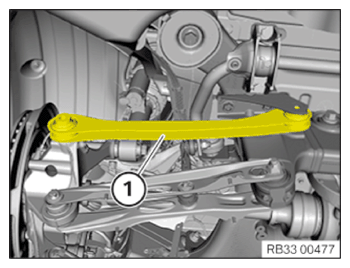

Remove the control link (1).

Courtesy of BMW OF NORTH AMERICA, INC.
