Install the control link

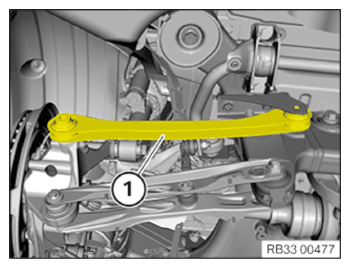

• Position the control link (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

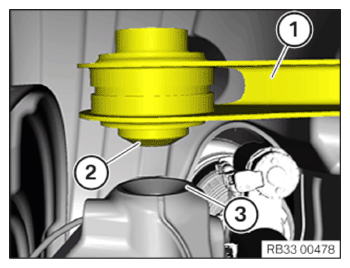

• Make sure that, while installing the toe link (1), the conical side (2) of the rubber mount points in the direction of the wheel carrier (3).

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: TECHNICAL INFORMATION
  Tighten the screw connection in the NORMAL POSITION .
  For additional information see: technical data for REAR AXLE .

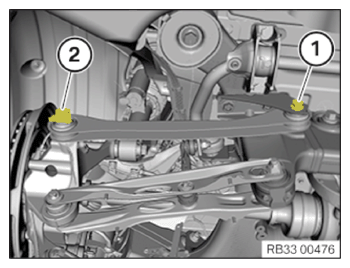

• Replace screws (1) and (2).

  Parts:  Screws

• Insert the bolts (1) and (2) and screw in by hand force.
• Tighten the screw (1) in NORMAL POSITION .
  TIGHTENING TORQUES SPECIFICATION



  Control link to control link bearing bracket
  M12 Replace screw. Tighten in normal position.	Joining torque	100 Nm
  	Angle of rotation	90°

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten the screw (2) in NORMAL POSITION .
  TIGHTENING TORQUES SPECIFICATION



  Track arm to wheel carrier
  M14 Replace screw. Tighten in normal position.	Joining torque	165 Nm
  	Angle of rotation	90°

Follow-up work

• Refer to INSTALLING THE COVER OF THE CAMBER CONTROL ARM .
• Refer to MOUNTING THE WHEEL .
• Refer to PERFORM CHASSIS ALIGNMENT CHECK .
