Securing rear axle
NOTE:
Perform the steps on the right and left side.

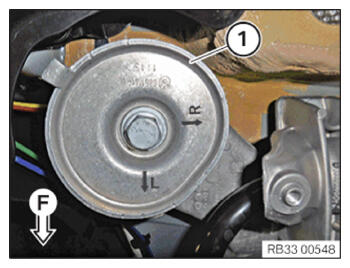

- Tighten the thrust washer (1)
on the left on the rubber mount of the rear axle support.
Left thrust washer (1) = L arrow in driving direction
Right thrust washer (1) = R arrow in driving direction
- Replace screw.
Parts: Screw
- Tighten down screw.TIGHTENING TORQUES SPECIFICATION
Rear axle carrier to body M14
Replace screw.tightening torque 185 Nm Install thrust arm

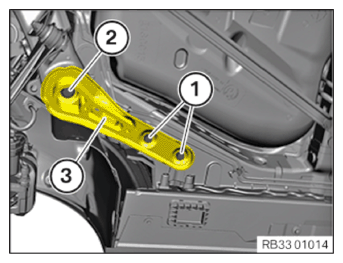

- Replace screws (1)
and (2)
.
Parts: Screws
- Position thrust arm (3) .
- Tighten the screws (1) and (2) hand-tight.
- Tighten down screw (2)
.TIGHTENING TORQUES SPECIFICATION
Rear axle carrier to body M14
Replace screw.tightening torque 185 Nm - Tighten down screws (1)
.TIGHTENING TORQUES SPECIFICATION
Thrust arm on body M10
Replace screws.Joining torque 56 Nm Angle of rotation 45°
