Rear Axle -- Repair (2 Of 2) (G14, G15, & G16)
>>
33 32 Rear Control Arms, Trailing Arms, Camber Arms
>>
33 32 091 Replacing a control arm (M850i xDrive coupe)
>>

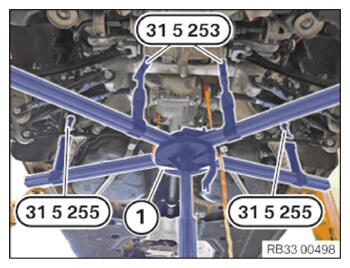

Remove the special tool from the rear axle
Remove the special tool from the rear axle
Loosen the luggage strap
(1)
.
Lower the special tool
0 495 567 (31 5 250)
and set it aside.
