Remove top wishbone

NOTE: TECHNICAL INFORMATION
Perform wheel alignment after Installation.

Preliminary work

Refer to REMOVING THE WHEEL .
Refer to REMOVING THE COVER OF THE CAMBER CONTROL ARM .

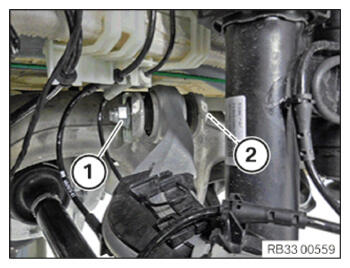

Loosen nut (1).
Remove the eccentric washer.
Pull out screw (2).

Courtesy of BMW OF NORTH AMERICA, INC.

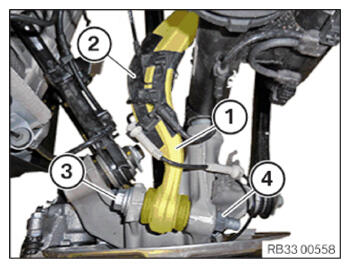

Loosen the cable clip (2).
Release the nut (4).
Pull out screw (3).
Remove top wishbone (1).

Courtesy of BMW OF NORTH AMERICA, INC.
