Remove trailing arm

Preliminary work

• Refer to REMOVING THE WHEEL .

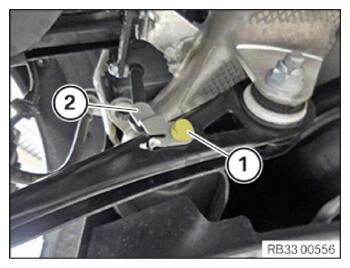

• Loosen screw (1)  .
• Release the attachment rod (2) of the ride height sensor from the trailing arm.

  Courtesy of BMW OF NORTH AMERICA, INC.

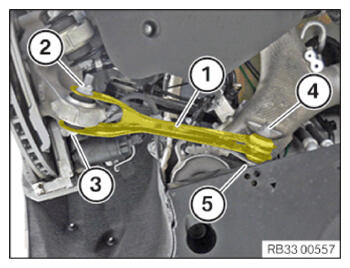

• Loosen nuts (2) and (4).
• Pull out screws (3) and (5).
• Remove the trailing arm (1).

  Courtesy of BMW OF NORTH AMERICA, INC.
