Install complete rear axle support
- Carefully lift the rear axle support and position it on the body.

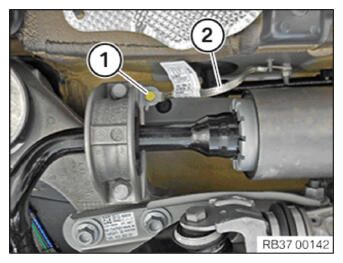

Securing the ground cable on the rear axle support
NOTE: The following step(s) must be performed if the listed component(s) is/are installed. - Position ground cable (2) on rear axle support.
- Tighten down screw (1)
.TIGHTENING TORQUES SPECIFICATION
HSR actuator ground cable on rear axle support M6 tightening torque 12 Nm
