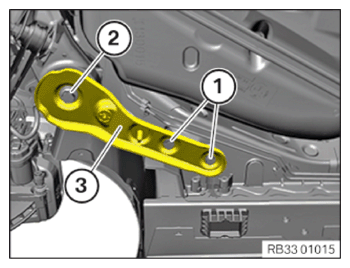

Install thrust arm

• Replace screws (1) and (2).

  Parts:  Screws

• Position thrust arm (3).
• Screw in the screws (1) (2) by hand.
• Tighten down screw (2).
  TIGHTENING TORQUES SPECIFICATION



  Rear axle carrier to body
  M14 Replace screw.	tightening torque	185 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten down screws (1).
  TIGHTENING TORQUES SPECIFICATION



  Thrust arm on body
  M10 Replace screws.	Joining torque	56 Nm
  	Angle of rotation	45°

Follow-up work

• Refer to INSTALLING REAR TORSION STRUT .
