Collision - Body Panel Repair (G14, G15, & G16) (2 Of 2)
>>
41 63 Other Flaps
>>
41 63 060 Remove And Install Convertible Top Compartment Lid (8' Series Convertible Models)
>>
Installing The Convertible Top Compartment Lid
Installing The Convertible Top Compartment Lid

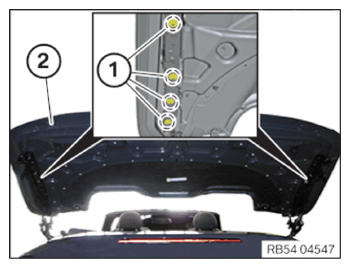

Position the convertible top compartment lid (2) with the assistance of another person.
Reposition the spacers if necessary.
Tighten nuts (1).
TIGHTENING TORQUES SPECIFICATION
Convertible top compartment lid to kinematics
Nut
tightening torque
9 Nm
