Remove The Fuel Filler Flap

Preliminary work

Follow-up work

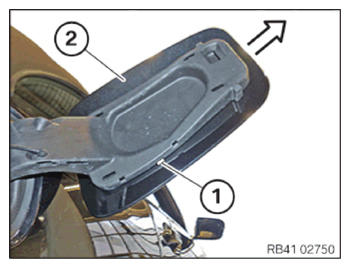

• Open the fuel filler flap (2).
• Slide screwdriver into the recess (1) and turn through approx. 45°.
• Detach the fuel filler flap (2) in the direction of the arrow,

  Courtesy of BMW OF NORTH AMERICA, INC.
