41 62 Tailgate
>>
41 62 540 Removing And Installing/Replacing Both Tailgate Hinges (Trunk Lid Detached) (8' Series Gran Coupe Sedan Models)
>>
Installing Left Tailgate Hinge
Installing Left Tailgate Hinge
NOTE:

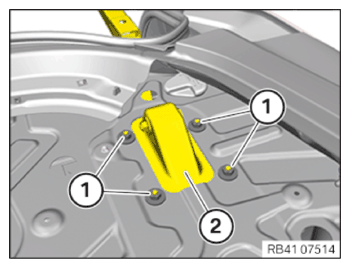

To provide a better overview: Schematic diagram with partially hidden components.
(2) Place tailgate hinge.
Tighten nuts (1).
TIGHTENING TORQUES SPECIFICATION
Tailgate hinge to body
Nut M8
tightening torque
19 Nm
Courtesy of BMW OF NORTH AMERICA, INC.
NOTE:

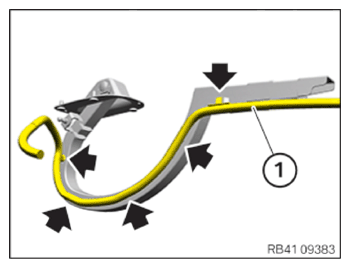

For a better overview the removed condition is shown here.
Secure the wiring harness (1) to the hinge arm (arrows).
Courtesy of BMW OF NORTH AMERICA, INC.
