Remove Right Tailgate Hinge

Release the electrical spindle drive on the right hinge arm

NOTE: RISK OF DAMAGE
Damage to the spindle drive .
If the trunk lid is not opened completely, the spindle drive may be damaged .

Remove and install the spindle drive only when the Trunk lid is open to the maximum extent.

NOTE: TECHNICAL INFORMATION
The notes on the disassembly and installation of ball sockets with clamps are the basis for these repair instructions and must be observed without fail.
For additional information see: 51 23... Note information on disassembly/installation of ball sockets with clamp

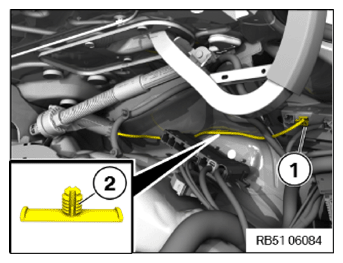

Unlock plug connection (1) and disconnect.

Courtesy of BMW OF NORTH AMERICA, INC.

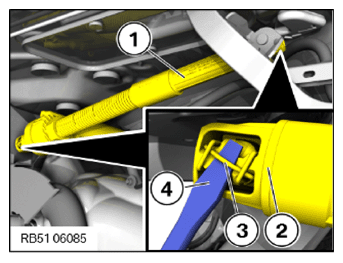

Before removing the electrical spindle drive (1) for the trunk lid, make sure that the ball socket (2) is relieved.
Raise each retaining spring (3) on the hinge arm slightly with a small screwdriver (4).
Detach the electrical spindle drive (1) on the hinge arm from the ball hub and set it aside.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: For a better overview the removed condition is shown here.

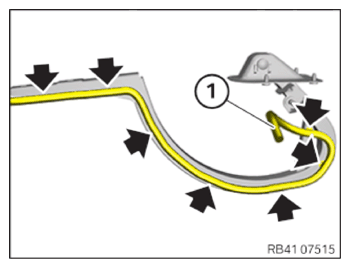

Release wiring harness (1) from the hinge arm (arrows) and set it aside.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: To provide a better overview: Schematic diagram with partially hidden components.

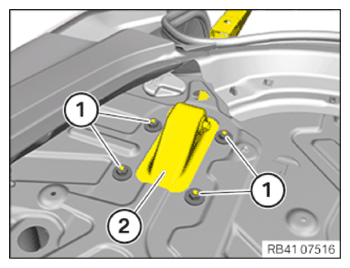

Loosen nuts (1).
Remove tailgate hinge (2) downwards.

Courtesy of BMW OF NORTH AMERICA, INC.
