Installing The Trunk Lid

NOTE: RISK OF DAMAGE
Mechanical effects .
Paint damage .

Mask those working areas at risk with yellow plastic adhesive tape.
Remove and install heavy or bulky components with the aid of another person/other persons.

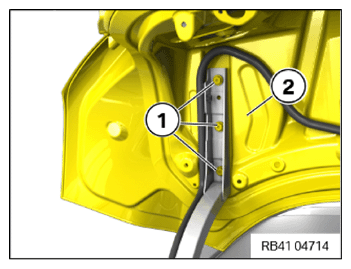

Position trunk lid (2) on hinges on both sides.
Hand-tighten the bolts (1).
Carefully close the trunk lid and check for contact with the body.

Courtesy of BMW OF NORTH AMERICA, INC.
