Collision - Body Panel Repair (G14, G15, & G16) (2 Of 2)
>>
41 62 Tailgate
>>
41 62 540 Removing And Installing/Replacing Both Tailgate Hinges (Trunk Lid Detached) (8' Series Coupe Models)
>>
Installing Left Tailgate Hinge
Installing Left Tailgate Hinge
NOTE:

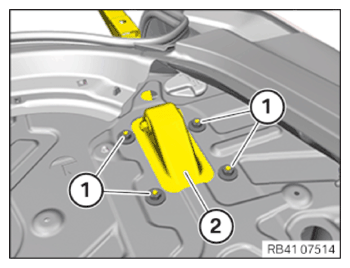

To provide a better overview: Schematic diagram with partially hidden components.
(2)
Place tailgate hinge.
Tighten nuts
(1)
.
TIGHTENING TORQUES SPECIFICATION
Tailgate hinge to body
Nut M8
tightening torque
19 Nm
Courtesy of BMW OF NORTH AMERICA, INC.
NOTE:

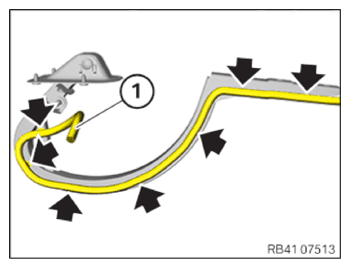

For a better overview the removed condition is shown here.
Attach wiring harness
(1)
to the hinge arm (arrows).
Courtesy of BMW OF NORTH AMERICA, INC.
